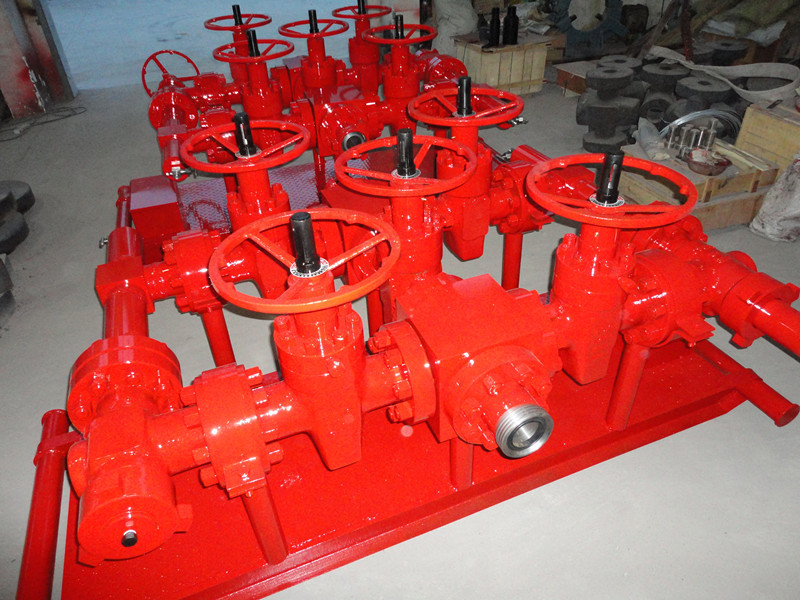

API 16C Wellhead Manifold High Pressure Kill Manifold 4 1 / 16 " -5000psi
The chock manifold and the kill manifold are important well control equipment for down-hole operation to carry out near balance drilling. During drilling, the choke manifold and kill manifold are able to keep reservoirs form pollution and control well blowout efficiently. The design and the manufacture of the choke and kill manifolds conform to API 6A and 16C standards. The valves of the choke and kill manifold can provide small starting torque, reliable well sealing and excellent mechanical properties. The major parts are specially heat treated, with good abrasion and corrosion resistance capabilities. Various types of manifolds are available at customers' option.
The kill manifold is used to kill the well during well drilling. Kill manifolds are used to forcibly inject heavy drilling fluid, fresh water and fire extinguishing agent into the well to carry out well-kill operation, prevent well kick, blowout or fire, and fire suppression operation after fired
Specification of the Choke manifold and Kill manifold
| Name | Choke manifold | Kill manifold |
| Model | JG35 | YJG35 | YJG70 | YJG70A | JG35 | JG70 | JG70A |
| Main & side bore diameters | 103×65 mm (4×2-5/8 in) |
| Working pressure | 35 MPa
5, 000 psi | 70 MPa
10, 000 psi | 35 MPa
5, 000 psi | 70 MPa
10, 000 psi |
| Working temperature | -29 to 121 ℃ |
| Working media | Mud, crude oil (containing H2S) |
| Control media | Double wing manual valve | Double wing
hydraulic valve | Triple wing
hydraulic valve | Single wing with |
About JC Wellhead
Yancheng Jingcheng Petroluem Machinery Manufacturing hereafter JC Wellhead, is the manufacture and supplier of the various wellhead equipment including wellhead manifold, wellhead Christams tree, wellhead valves, wellhead adapter flanges, casing head assy., tubing head assy, related parts to meet different requirement in oilfield service operation. The wellhead manifolds are conformed with API 6A and API16C specification, and applied for high pressure and high temperature working condition. The wellhead manifold include choke and kill manifold, fracturing manifold, testing manifold,drilling floor manifold, drilling fluid manifold etc.
YCJC's advantage:
* Excellent and stable quality of the products conformed with API and ISO standard
* Strict quality control on raw material and machining, we can arrange the SGS or BV to witness the test
* We supply various wellhead products to meet the customers' operation.
* Timely delivery, professional service on export procedure,
* Product guarantee and best after-sales service.
Welcome to contact us for more information!
