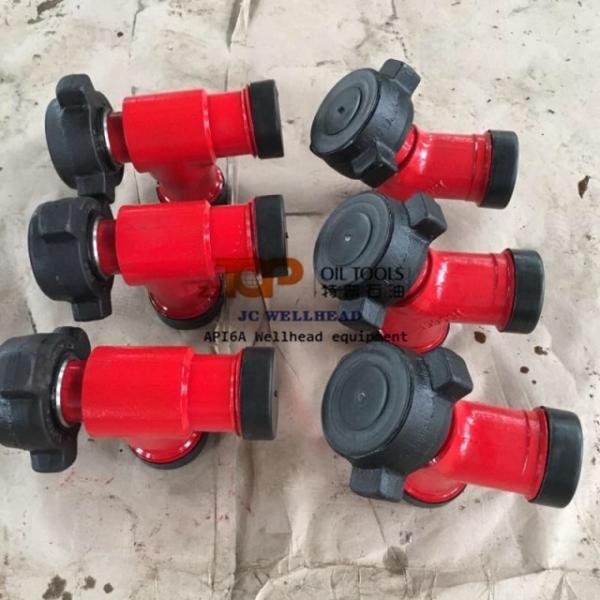

3" PLS 3 PR2 Integral Tee 15000Psi Wellhead Fittings

  • 1
  • 2

Brand Name : JC Wellhead

Model Number : 3" x 15000psi Tee

Certification : API 6A

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/P

Supply Ability : 300 sets / month

Delivery Time : 30-45 days

Packaging Details : Polywood case for land, air, ocean shipment

Application : Wellhead Integral Fittings

Usage : Wellhead flow control connection

Material : AISI 4130

Production Level : PLS 3

Production level : PR2

Standard : API 6A

Product name : Integral Tee

Working pressure : 15000psi

Size : 3"

Working condiction : standard serive or sour service

Contact Now

API 6A Integral Tee 3” fig.1502 15000 psi Wellhead Fittings Thread x Thread x Wing

The Integral Tee is one of wellhead integral fittings which is manufactured according to API 6A specification, The integral tee includes wye and Y tee (Y shape tee),90 degree elblow, 180 degree elbow ,tee,cross,Laterals and Fishtails,with sizes of integral tee is ranging from 2" to 7" and pressures from 3000psi to 20000psi.The integral tee is made of high strength alloy steel forging with all heat-treated to enhance load-bearing capacity and lengthen service life.They may have union ends for easy connection with various cementing or fracturing equipment,or have a welded end connector.

Technical parameter of integral tee

Product Name: Weco Union Tee/Flow Tees
Size: 1", 2", 3", 4"
End Connection: Fig 602, Fig 1502, Fig 1002, Fig 2002, Threaded
Material: AISI 4130 Integral Forged
Standard Carried: API Spec 16C, NACE-MR0175
Cold Working Pressure (CWP): 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI
Configuration: Male x Male x Female (MxMxF)
Service: Standard, H2S Service, Sour Service
Temperature Range: -46°C~121°C
Application: High-pressure well service flowlines, frac manifold, well testing internal connections

Detailed specification of 3" Wellhead integral tee

1 Integral Tee 3” fig.1502 15000 psi (thread, thread, wing)
2 Integral Tee 3” fig.1502 15000 psi (thread, wing, thread)
3 Integral Tee 3” fig.1502 15000 psi (wing, wing, thread)
4 Integral Tee 3” fig.1502 15000 psi (wing, thread, wing)
5 Integral Yee 3" fig. 1502 15000 psi (thread, thread, wing)

3" PLS 3 PR2 Integral Tee 15000Psi Wellhead Fittings3" PLS 3 PR2 Integral Tee 15000Psi Wellhead Fittings

About JC Wellhead

Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.

In 2012, JC wellhead jointed with ZZ TOP Oil Tools, and found the office in Xi'an mainly engaged in abroad marketing, through these years of efforts, our wellhead equipment is exported to many countries, such as Thailand, UAE, Iran, Brazil, Argentina, USA etc. and enjoyed good reputation from the customers.

Product Scope

*BOP : Taper Rubber Annular BOP, Spherical rubber Annular BOP, Single Ram BOP, Double Ram BOP
* Wellhead Equipment: X-mas tree, casing head, casing hanger, tubing head, tubing hanger, casing spool, tubing spool, API Clamp, API Clamp Hub
* Wellhead valve: Gate valve, Choke valve, Check valve, Mud valve, and valve parts
* Wellhead adapter: Double studded adapter flange, spacer spool, riser spool, drilling spool, weldneck flange, union flange adapter
* Other wellhead equipment parts: Hammer union, Elbow, swivel joint, block cross, Block Tee,
* Oil well manifold: choke manifold, kill manifold, testing manifold

YCJC will constantly insist on the innovation of products, technologies and system and strive for providing the excellent products and services for our customers. We are sincerely welcome you to work together.
