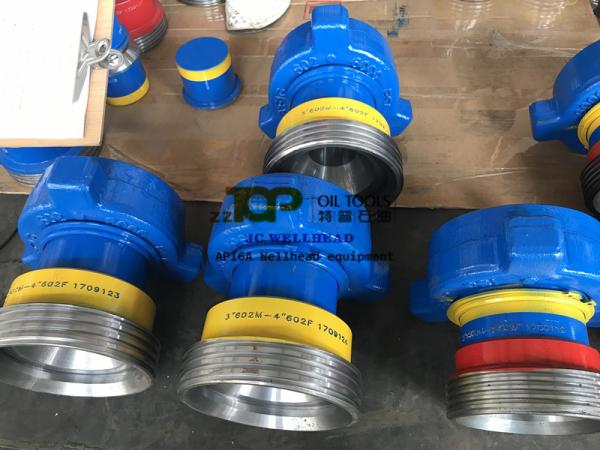

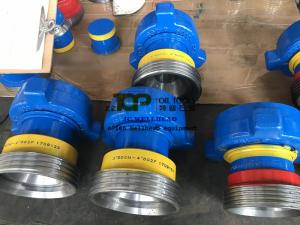

Hammer Union AISI 4130 Forging Wellhead Crossover API 6A

  • 1
  • 2

Brand Name : JC Wellhead

Model Number : 3" FIG 602 x2" FIG1502 Hammer Uion Crossover

Certification : API 6A

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/P

Supply Ability : 300 sets / month

Delivery Time : 30-45 days

Packaging Details : Polywood case for land, air, ocean shipment

Application : Wellhead Equipment Connection

Usage : Wellhead Pipe Fittings

Material : AISI 4130 Forging

Production Level : PLS 3

Temperature Class : U

Standard : API 6A

Product name : Hammer Union Cross over

Working pressure : 6000 psi x 15000 psi

Connection : Fig 1502 x Fig 602

Contact Now

API 6A Wellhead Cross Over High Pressure Hammer Union 3" FIG 602 x2" FIG1502

The hammer union is the wellhead fittings, as the part of wellhead equipment to be applied to the connection of blocking, Kill line, high pressure manifolds and vehicle-mount system in oil well cementing operation ,crushing operaton , acidifying and well testing operation. And underground well operation the weco hammer union is used to connect the various parts of the pipeline parts and so on. The size of hammer union is from 1''to 12''with cold working pressures from1,000 psi to 20,000 psi. The hammer union is made from alloy steel forging, featured with high strength and pressure-bearing capacity, and all unions have their own color signs for quick identification

Specification of the Hammer Union

Item # Description
1 CROSSOVER:
TYPE: HAMMER UNION SIZE (1): 2" FIG 1502 MALE MATERIAL: CS
APPLICATION: Well Surface Fitting LENGTH: 1 FT
MFG. CODE/STD.: API 6A LATEST EDITION
SIZE (2): 3" FIG 602 FEMALE
CONNECTION (1): 2" FIG 1502 MALE WECO CONNECTION
CONNECTION (2): 3" FIG 602 FEMALE WECO CONNECTION
TEXT: ADAPTER 2" FIG 1502 MALE WITH WING NUT x 3" FIG 602 FEMALE INTEGRAL CONSTRUCTION
OVERALL LENGTH 1 FT MATERIAL CS
SUITABLE FOR Standard SERVICE API-6A
SUPPLIER TO PROVIDE RELEVANT API CERTIFICATION AND MTC AS APPLICABLE
2 CROSSOVER:
TYPE: HAMMER UNION
SIZE (1): 2" FIG 1502 FEMALE MATERIAL: CS
APPLICATION: Well Surface Fitting LENGTH: 1 FT
MFG. CODE/STD.: API 6A LATEST EDITION
SIZE (2): 3" FIG 602 MALE
CONNECTION (1): 2" FIG 1502 FEMALE WECO CONNECTION
CONNECTION (2): 3" FIG 602 MALE WECO CONNECTION
TEXT: ADAPTER 2" FIG 1502 FEMALE x 3" FIG 602 MALE WITH WING NUT INTEGRAL CONSTRUCTION
OVERALL LENGTH 1 FT CS MATERIAL
SUITABLE FOR Standard SERVICE API-6A

Hammer Union AISI 4130 Forging Wellhead Crossover API 6AHammer Union AISI 4130 Forging Wellhead Crossover API 6A

About JC Wellhead

JC Petroleum Equipment Factory manufactures and supplier the various wellhead equipment andrelated parts to meet different requirement in oilfield service operation. The wellhead equipment are conformed with API 6A and wellhead choke manifold is according to API16C specification, and applied for high pressure and high temperature working condition.

With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation.The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, double studded adapter spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange,blind flange, FC gate valve, FC gate valve seat, FC gate valve stem, API Clamp, API Clamp Hub, BOP & the related parts and high pressure wellhead manifolds such as choke and kill manifold, drilling fluid manifold etc

Welcome to contact us for more information!
